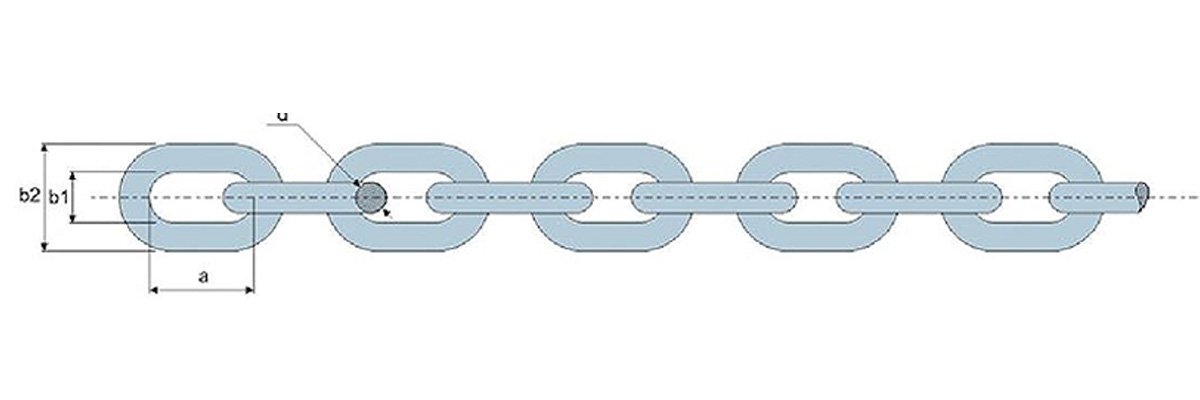

| Size(d) mm | Inside Length (a) mm | Inside Width (b1) mm | Outside Width (b2) mm | Weight Per M kg | Breaking Load kn | Proof Load kn |
| 4 | 16 | 5 | 14 | 0.313 | 7 | 4 |
| 5 | 18 | 7.0 | 18.2 | 0.514 | 11.8 | 6.8 |
| 6 | 21 | 8.0 | 21.5 | 0.74 | 16.5 | 8.5 |
| 8 | 28 | 11.0 | 29 | 1.315 | 32 | 16.8 |
| 10 | 35 | 14.0 | 36 | 2 | 50 | 26.3 |
| 12 | 42 | 16.0 | 41 | 2.98 | 70 | 36.8 |
| 13 | 45 | 18.0 | 47 | 3.5 | 80 | 42 |
| 14 | 49 | 20.0 | 48 | 4.06 | 92 | 48.3 |
| 16 | 56 | 22.0 | 58 | 5.2 | 125 | 67 |
| 18 | 63 | 24.0 | 65 | 6.5 | 160 | 84 |
| 20 | 70 | 27.0 | 72 | 8.2 | 200 | 100 |
| 23 | 80 | 31.0 | 83 | 11 | 250 | 130 |
| 26 | 91 | 35.0 | 94 | 14 | 320 | 160 |
